The Espirale Bell
Bell on flat-bar setup: Looks good!
Problem: Bicycle bells and other such modes of signalling do not work on drop bar bicycles in an ergonomic, easy-to-use fashion.

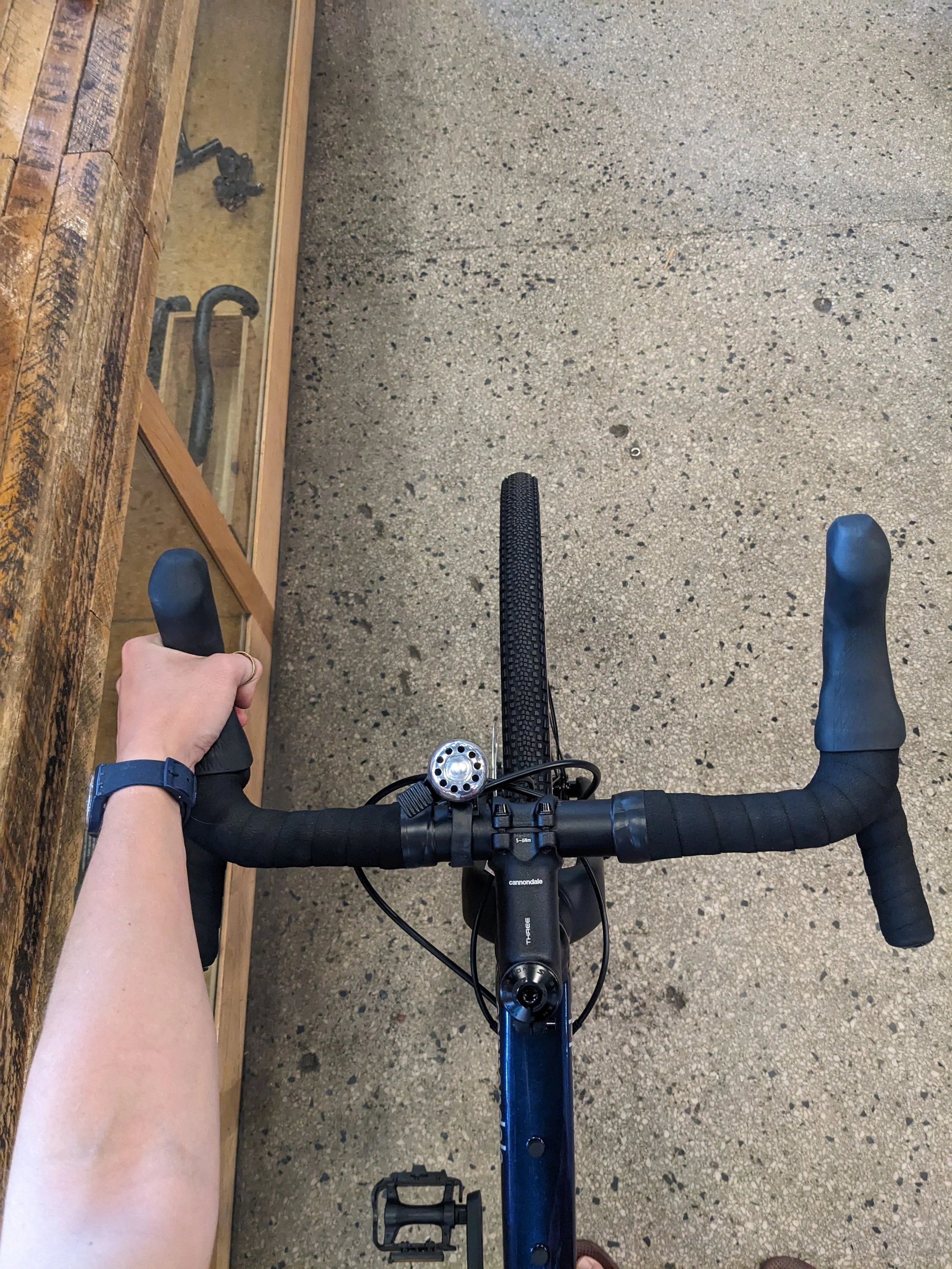

Bell (silver) on drop-bar set-up: Too far away!
Solution: Design a bicycle bell that can be actuated from both common drop-bar hand positions

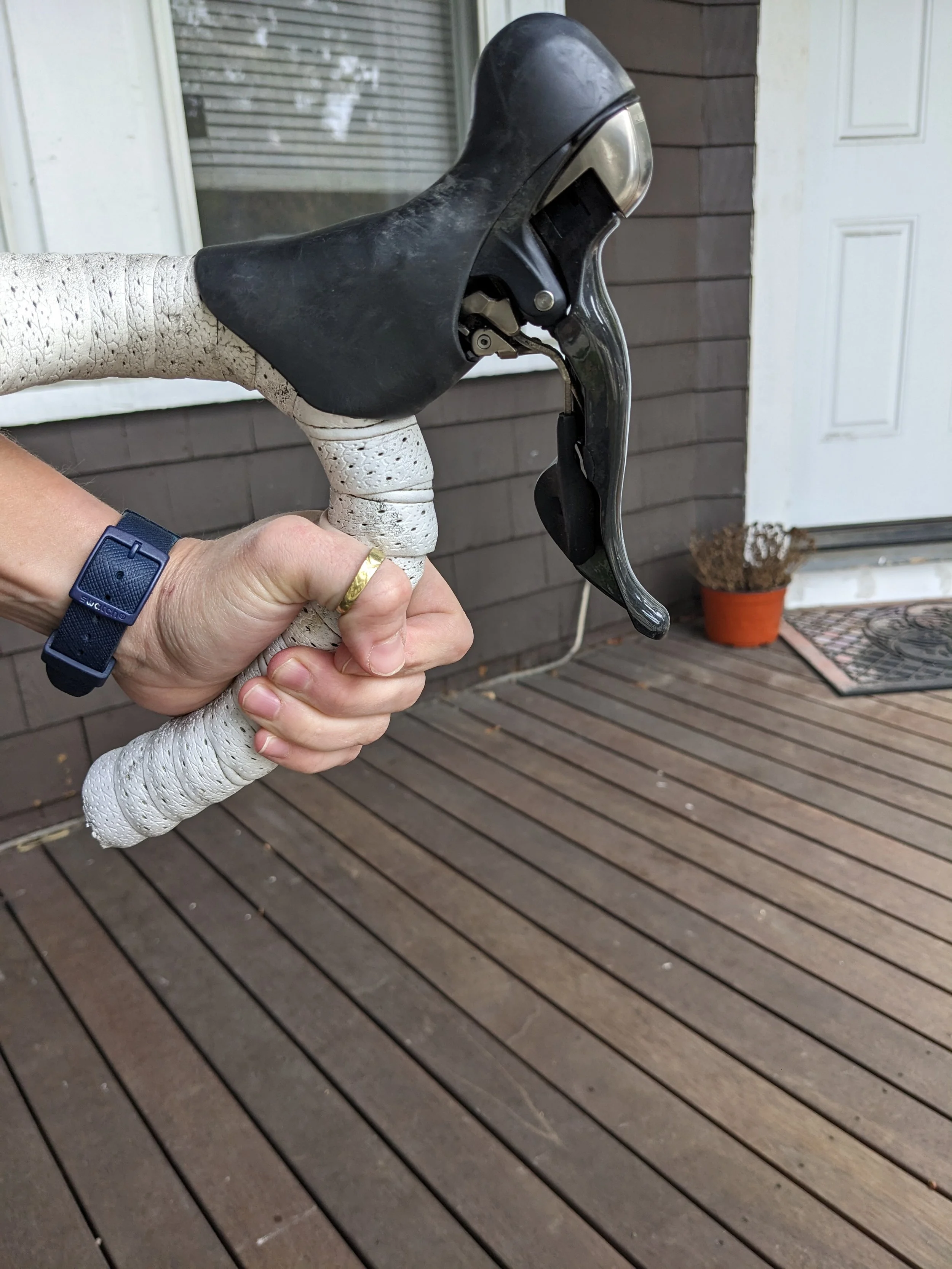

“In the drops,” a ride position used for speed and aerodynamics

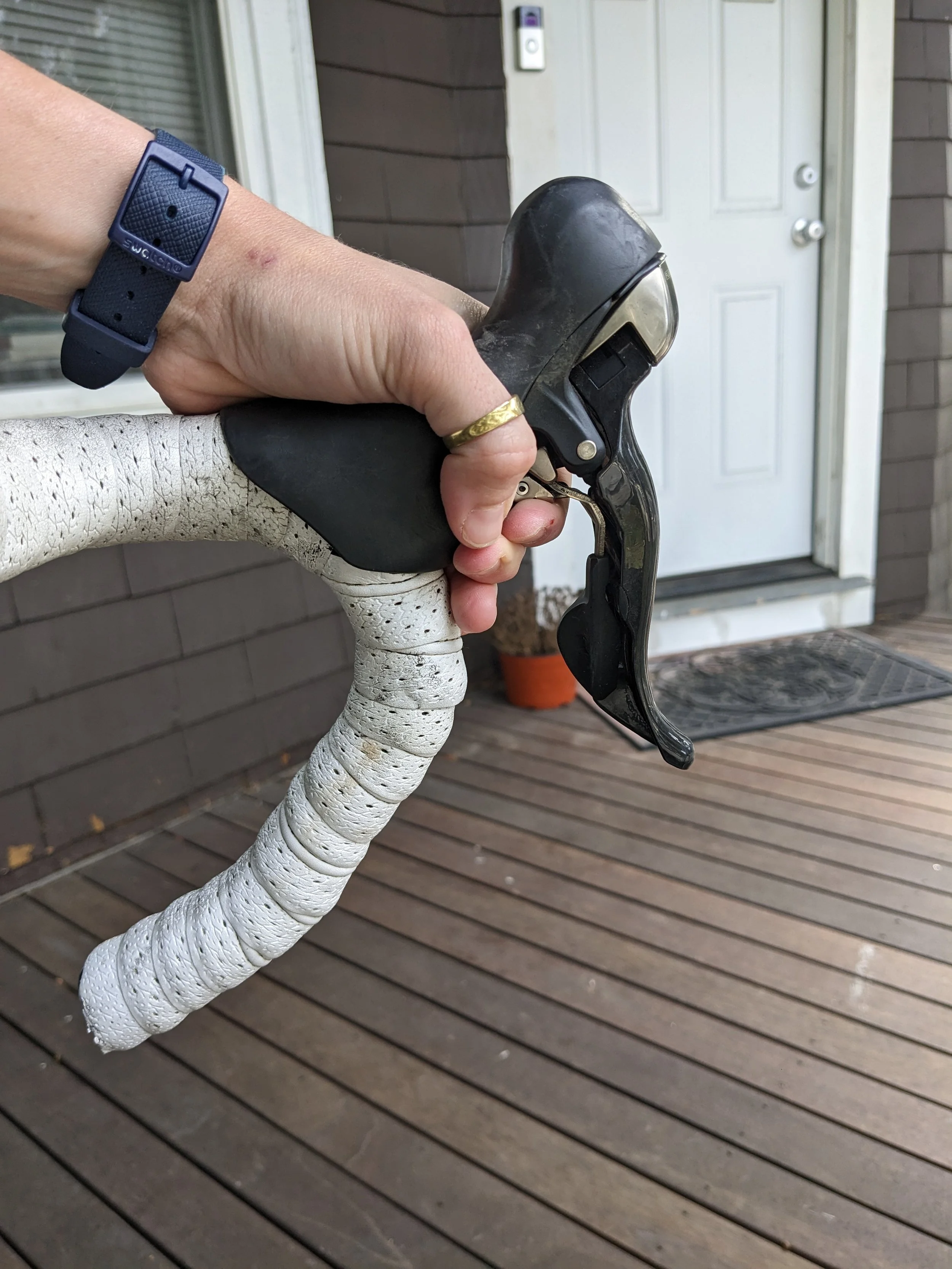

“On the hoods,” a ride position used for comfort and efficiency
The Initial Process: A six-month adventure of consumer surveys, studying competitors, and iterating through designs.

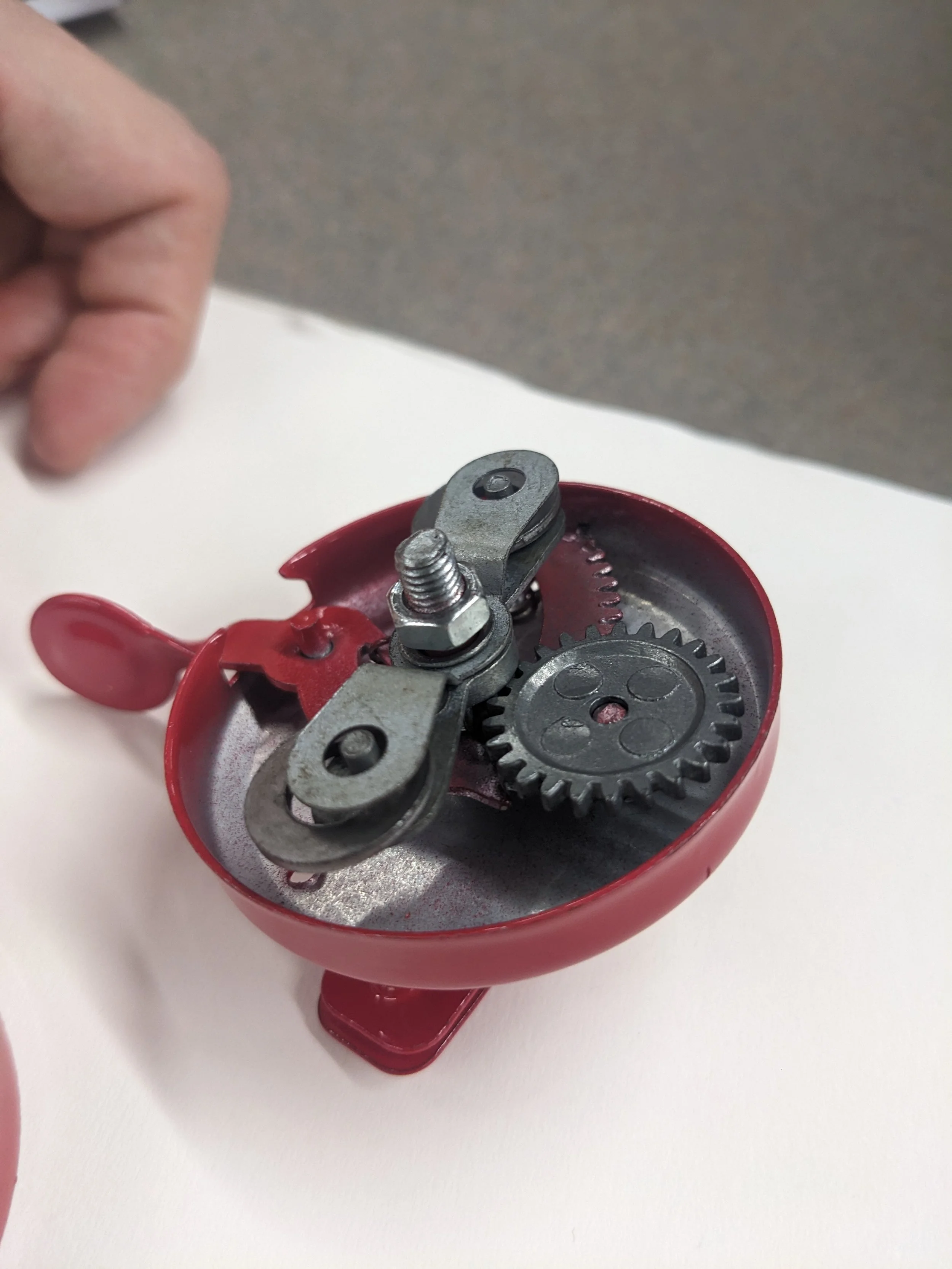

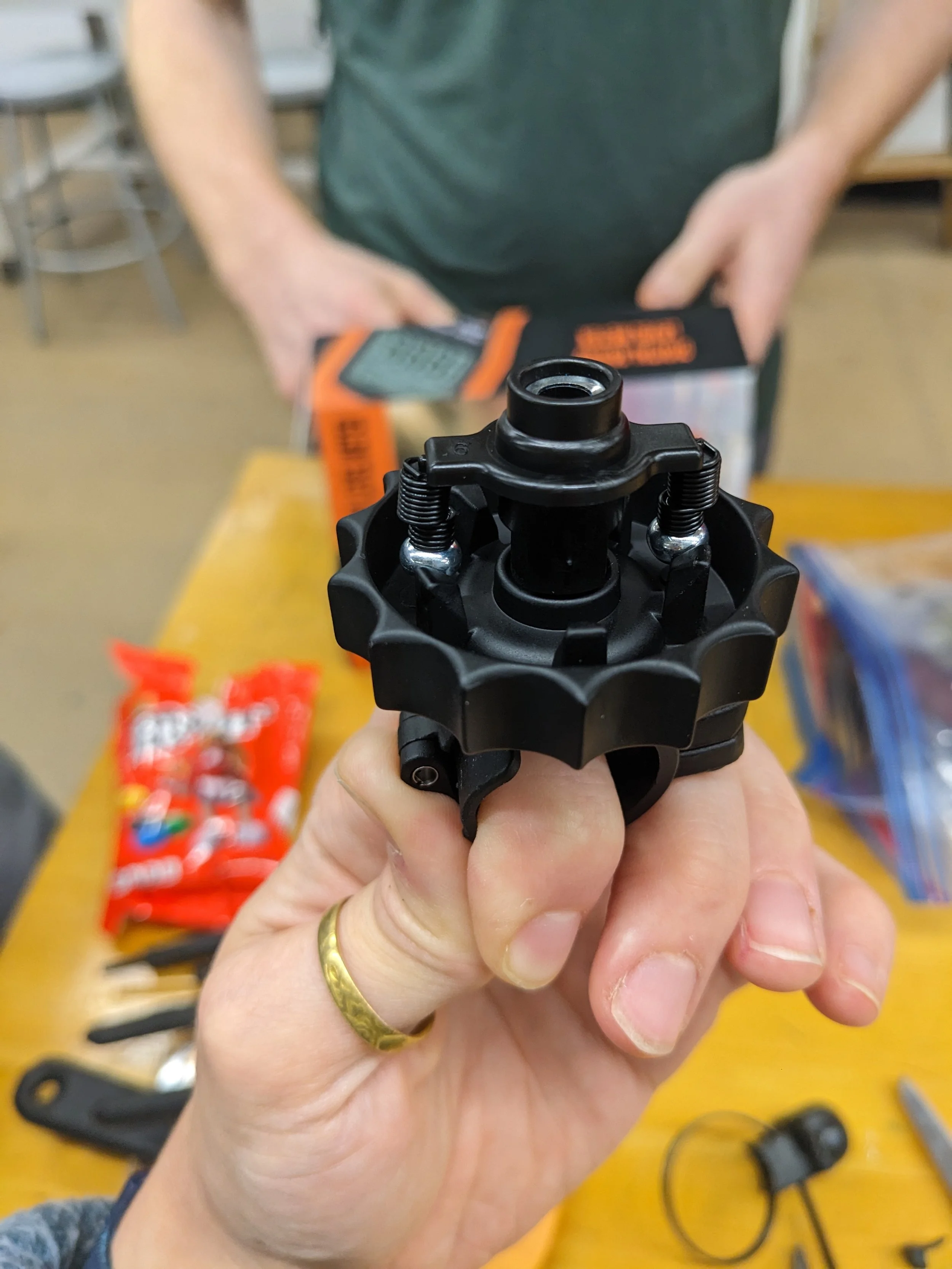

Below and Right 1 & 2: Competitor products taken apart and studied

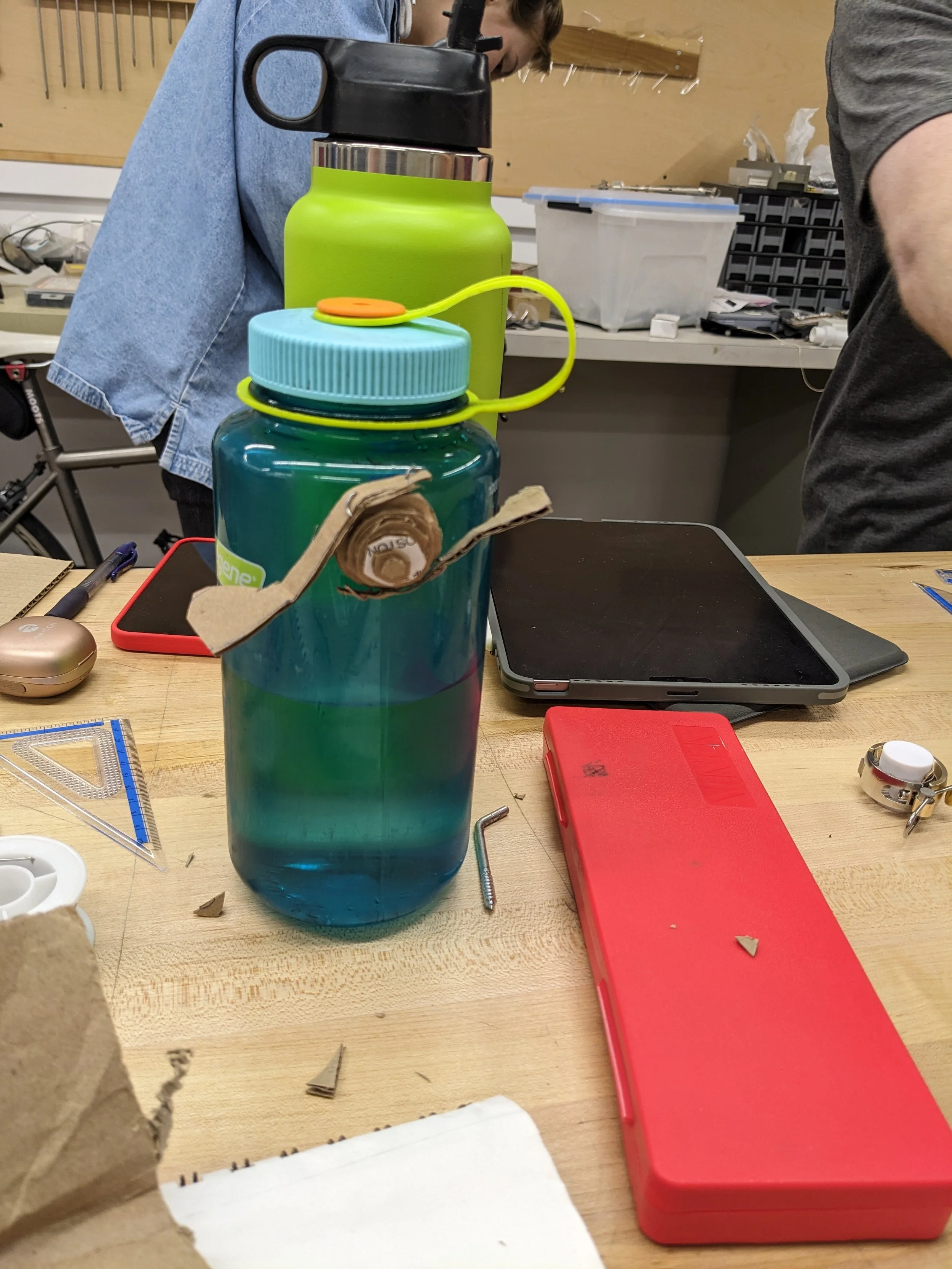

Left: Cardboard mock-up of double-actuator design
Left: Calling in a professional consult at the local bike shop
The Manufacturing Phase: A six-month slalom of machine shop work and computer-aided design

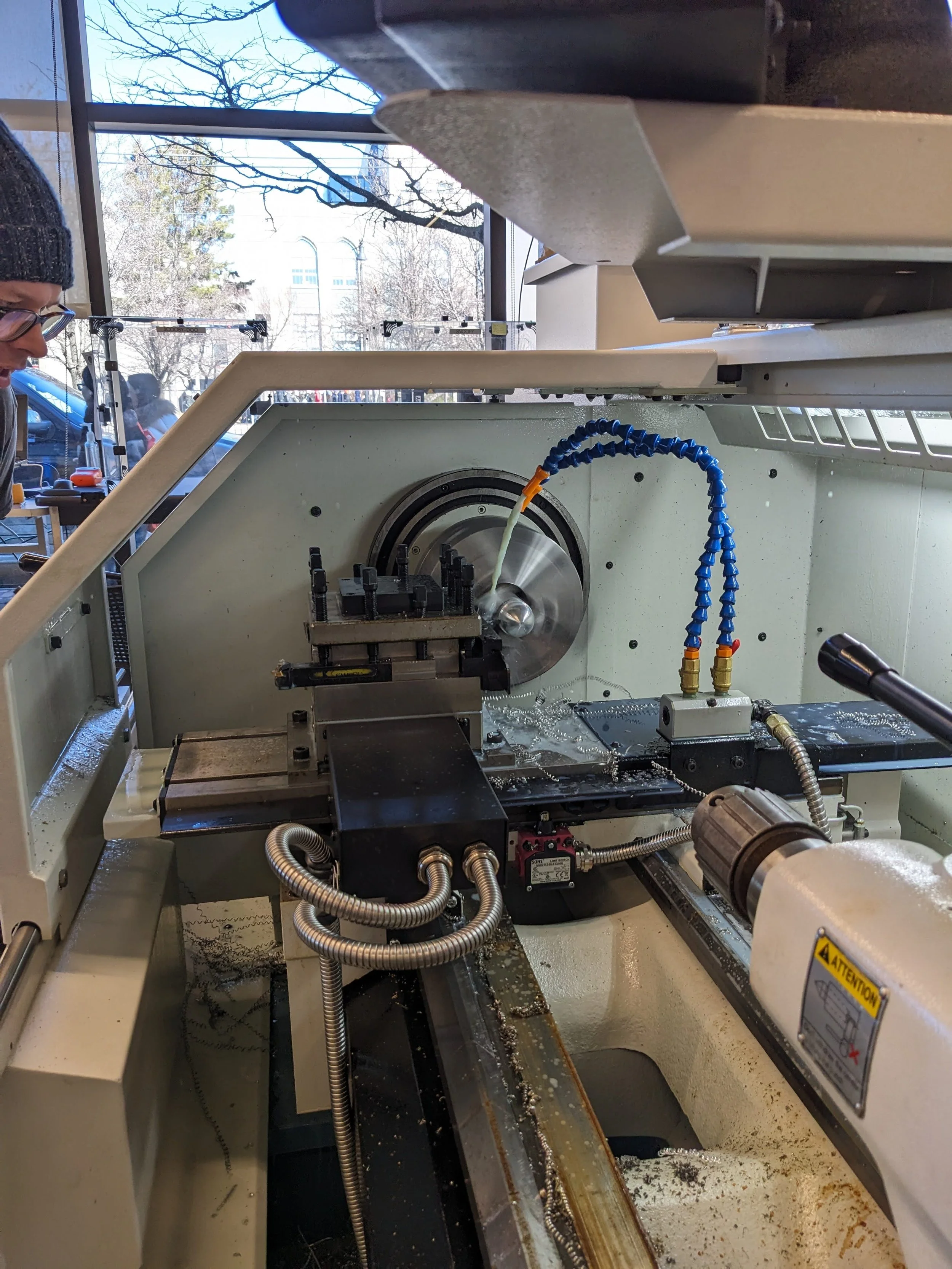

Right: Using CNC lathe to fabricate the bell dome, as school makerspace does not have stamping capability

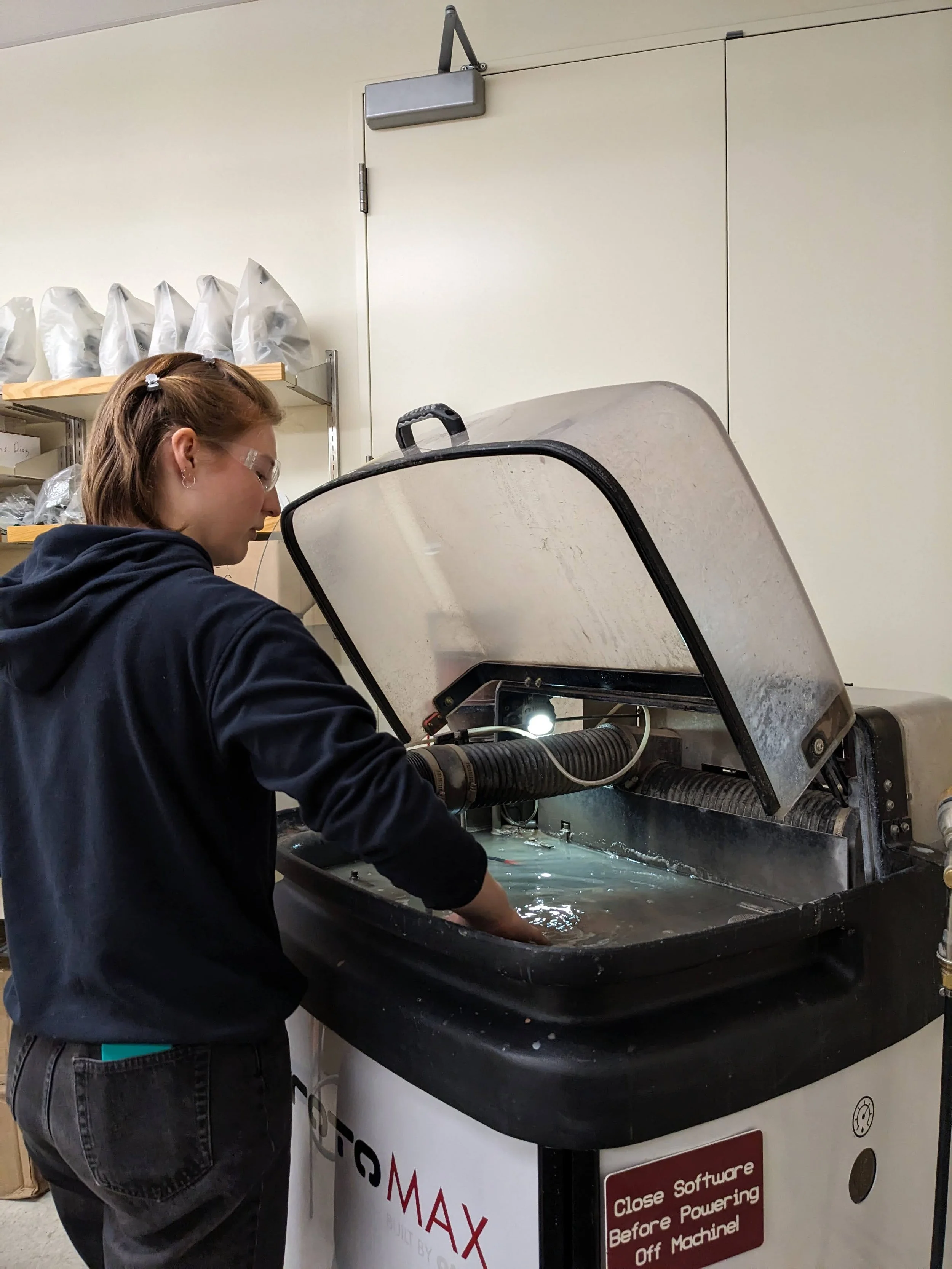

Left: Using water jet to cut initial actuator design

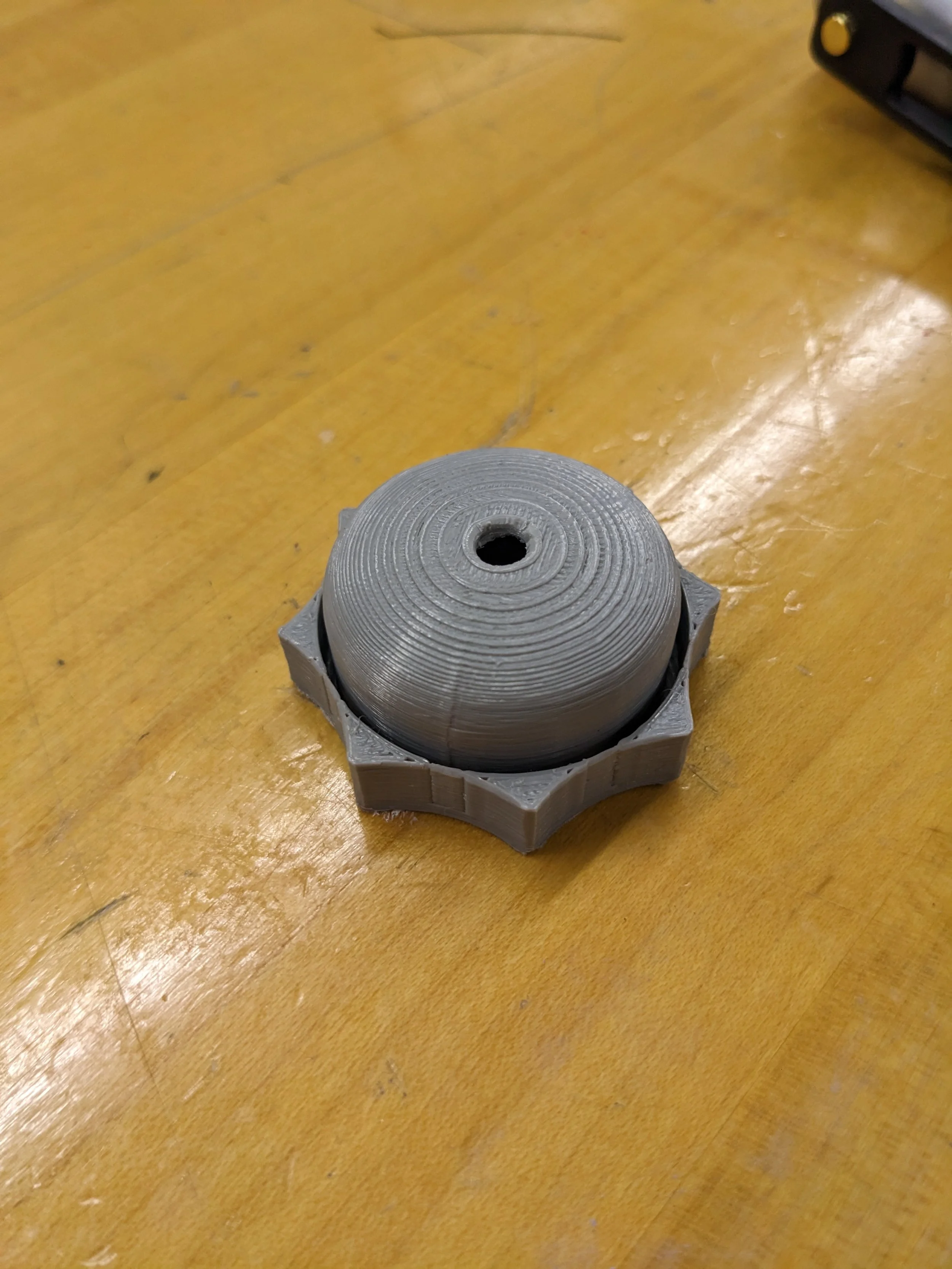

Right: 3-D printed mock-up
Left: Prototype, sans mount

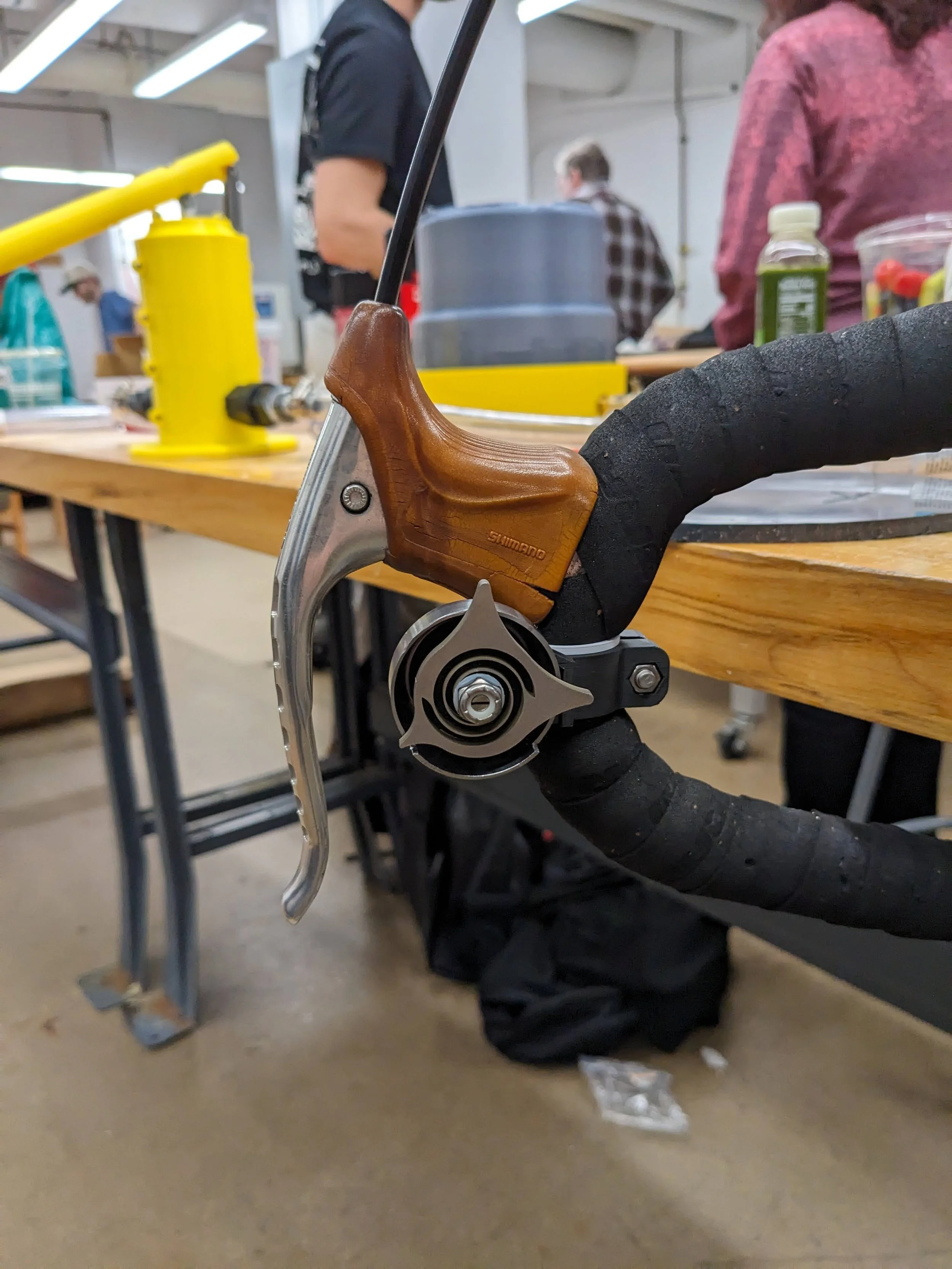

Right: Prototype with 3-printed mount
Left: Making technical drawings
